Grundfos CMB-SP 5-47 With Pressure Controller

Brand: Grundfos

SKU: 98507636

Was $2,133.00

$1,190.00 (Each)

Availability: Available

Make an Enquiry

CMB SP 5 47 Product Data

CMB SP 5 47 Spare Parts and Diagram

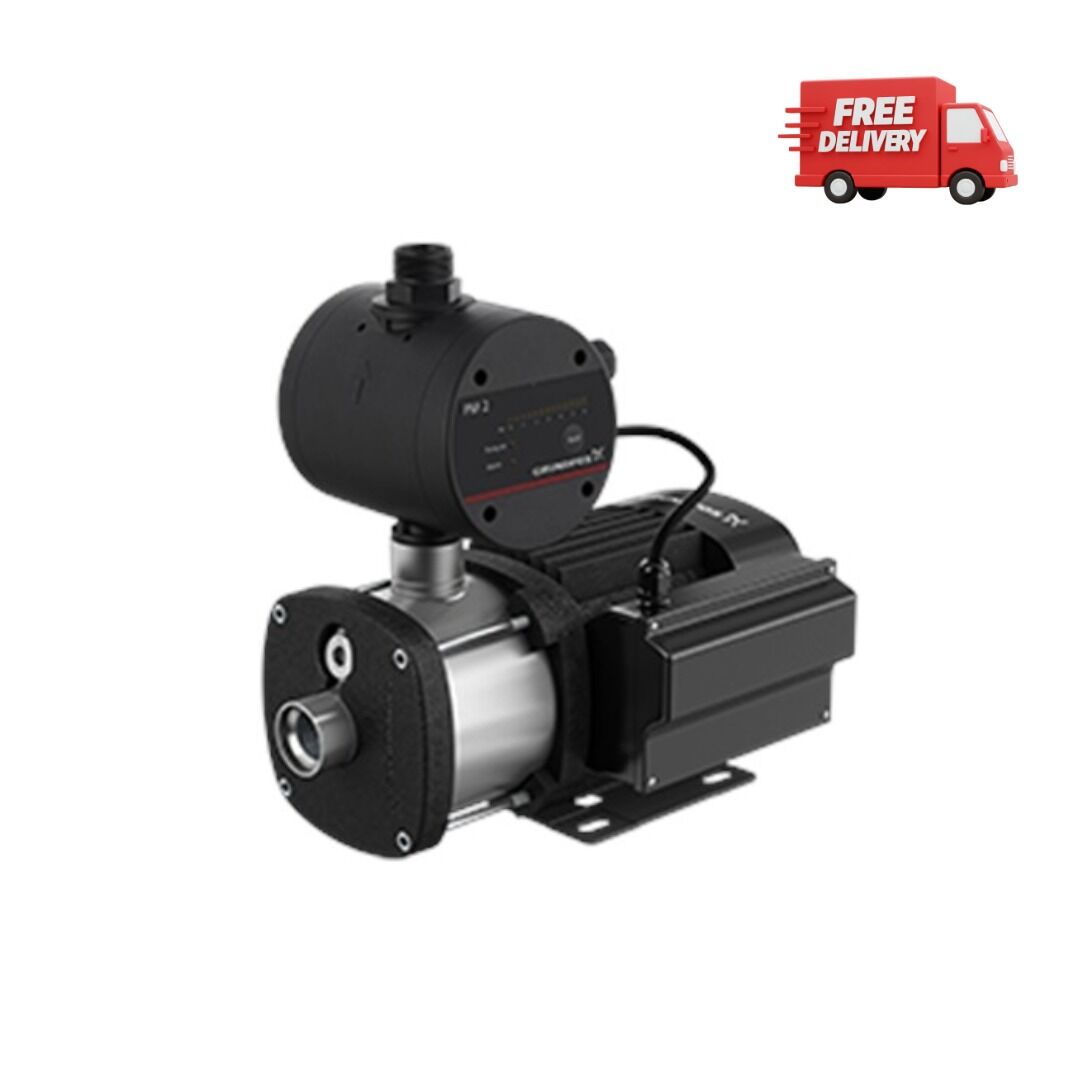

Grundfos CMB-SP 5-47 I-C-A-A-C-A Self-Priming Pump with PM2 Controller 98507636

The Grundfos CM Booster self-priming pump with PM2 pressure manager is a compact booster solution for water supply in domestic applications. The pressure booster unit consists of a Grundfos CM self-priming pump and a Grundfos PM2 pressure manager. The pressure manager allows the pump to start and stop automatically according to demand and protects the pump from dry running. The CM Booster self-priming pump can create a suction lift of up to 8 m, and it is very easy to install. When the booster has been connected to the pipework, just plug it into a socket, and the system is operational.

Features & Applications

Compact
Easy installation – plug & pump
Safe for use with drinking water
Self-priming up to 4 m
Suction up to 8m
Automatic resetting of alarms
Dry-running protection
Anti-cycling (leakage detection)
Maximum continuous operating time
Thermal overload protection
Non-return valve for backflow prevention
Mains Boosting
Household water supply
Boosting from above ground water tanks
Boosting from below ground water sources e.g. below ground tank/dam
Light industrial use

Motor / power: 900W
Max. flow: 100LT/min
Head: 47m
Inlet: 1″F / 25mm
Outlet: 1″M / 25mm
Pressure: 470kPa
Body: 304 Stainless Steel
Diffuser: Technopolymer
Impeller:304 Stainless Steel
Pump Shaft: 304 Stainless Steel
Mechanical Seal : Carbon with resin/ceramic
Start pressure: PM2 bar

Components: – Self-priming pump CM-SP – Cable 1.2 m with plug
Complete unit: Delivered as a pre-assembled compact unit
Maximum suction lift: 4 m (8m with foot valve)
Liquid temperature: 0°C to +60°C
Ambient temperature: 0°C to +55°C
Supply voltage: 1 x 240 Volt 50 Hz
System pressure: Maximum 10 bar
Enclosure class: Suitable for covered installation (IP55)
