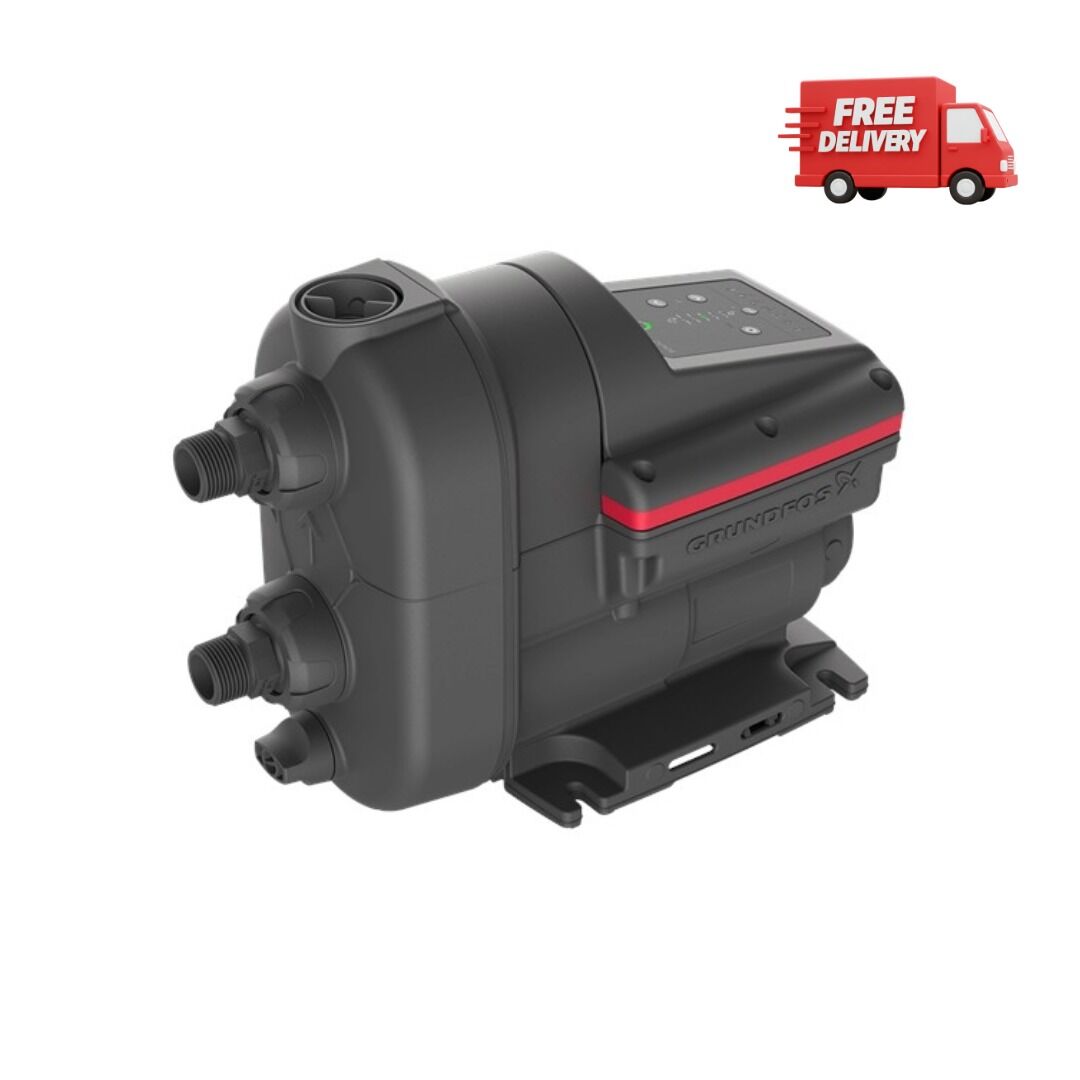

Grundfos SCALA2 3-45 Water Boosting VFD Pump 93059923

GRUNDFOS SCALA2 is a robust, composite, variable speed pump that adjusts performance according to water demand, providing constant pressure to all taps. The fully integrated pump includes a motor, tank, sensor, drive and non-return valve in one compact unit that is quick and easy to install. SCALA2 is self-priming, allowing for use from both above and below ground water sources and the water-cooled motor ensures quiet operation. Is suitable for outdoor installation.

• Constant pressure = constant comfort, same pressure maintained whatever the demand.
• Compact and easy to install: inlet and outlet connections flexible ± 5°.
• Easy to select: 1 single model dedicated to domestic applications.
• Self priming booster: Able to lift water from a depth of up to 8 m (with foot valve) in less than 5 minutes.
• High levels of integrated protections to protect your investment.
• Efficient and quiet: permanent magnet motor and cooled by the pumped liquid.

FEATURES

• Variable Speed – The pump adjusts performance according to water demand, providing constant pressure to all taps regardless of variations in demand or inlet pressure.
• Self-Priming – Ideal for pressurising water from above or below ground water sources with a suction lift of up to 8 metres and self-priming up to 4 metres.
  Energy Efficient – The pump features a permanent magnet motor to help reduce power consumption while the frequency controller matches the power consumption with the required water output, also helping to conserve energy and reduce energy bills.
• Simple Selection – One model to suit most domestic applications makes selection easy.
• User Friendly – The easy to use control panel features LED indicators displaying power status, pressure setting and alarm indicators lights.
• Protective Functions – To protect the pump and help ensure a long life, a range of protective features are incorporated into the pump such as; dry-run protection, anti-cycling alarm, auto-reset and maximum continuous operation time (30 mins).
• Easy Installation – Quick and easy installation in just three steps; connect the pipes, prime the pump and plug into the power outlet.
• Integrated Non-Return Valve – No additional non-return valve required – plug and pump solution.

Motor / power (P1): 550W
Max. flow: 78LT/min
Head: 45m
Inlet: 1″M / 25mm
Outlet:1″M / 25mm
Pressure: 470kPa
Impeller: Composite
Start pressure: PM1 – 1.5 bar

Liquid temperature: 0°C-+45°C
Ambient temperature: 0°C-+55°C
Supply voltage: 1 x 240 Volt 50 Hz
Adjustable constant pressure: Min 1.5 bar/max 4 bar
Maximum inlet pressure: 6 bar- 1.5 bar required to reach 5.5 bar
Nominal flow: 3 m3/h (3-4 taps)
Enclosure class: Suitable for outdoor installation (IP X4D)
Scope of delivery: Non return valves (inlet/outlet), cable 2 m with plug
Noise pressure level: Low noise levels (47 dB(A))

Warranty on pump: 2
Code: 93059923 (Previous Code 98562866)

2 Year Standard Warranty
