BIA-B120GMS2 MANUAL SUBMERSIBLE GRINDER PUMP FOR SEWAGE

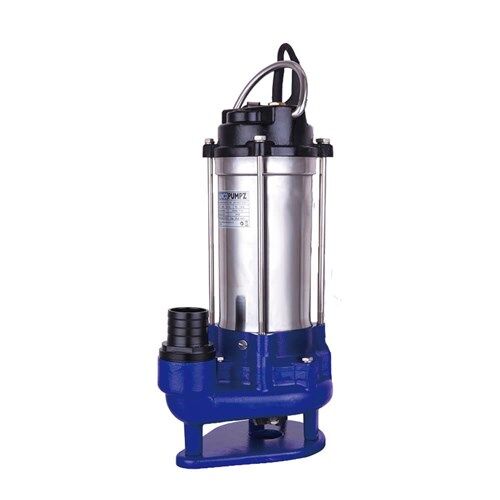

Bianco B120GS2 Submersible Grinder Pump
(802770)
The Bianco B120GS2 submersible grinder pump is suitable for small to medium waste water applications in industry, agriculture. It is supplied with a primary cutter and secondary grinder which make it unique in the market and capable of dealing with a multitude of different items in a waste water application including soft string-like materials. Not suitable for sand or gravel in order to prevent abrasion on the cutter and grinder.
The pump is characterised by:
- Cast iron pump body and impeller, stainless steel cutting/grinding device and motor shroud
- Replaceable grinding mechanism in high chromium hardened stainless steel (7CR17)
- Dual Ceramic/graphite mechanical seal
- Convenient carry handle
- 240V single phase motor with built-in auto reset thermal overload
- For use in dewatering effluent and sewage containing soft solids
- Domestic or Industrial sewage
- Suitable for small to medium wastewater applications
- Flows to 283 l/min
- Heads to 17m
- Supplied with a 2″ universal hose tail adapter
Technical Specifications
| Brand | Bianco Pumpz |
| Product Type | Sewage Pump |
| Suitable For | Sewage and Wastewater |
| Bar | 2.0 Bar |
| Flow Range Category | d. 300 – 399 L/min |
| Flow Rate (L/min) | 341 L/min |
| Float | Float Included |
| Hp | 2.2 Hp |
| kPa | 200 kPa |
| Kilo Watts | 1.5 kW |
| Head Range Category | a. 0 – 39 m |
| Max Head (m) | 20 m |
| Port Size Outlet | 2″ BSPF outlet |
| Powered | Electric |
| Volts | 240 V |
| Warranty (months) | 24 Months |
| Watts | 1500 W |
Weight: 27kg
- Used to pump sewage and solid wastewaters
- Soft solids in suspension by grinding them into a slurry
- Sump emptying
1.5kW, 2.2hp, 240V, max hd 15m, max flow 283L/m, BSPF outlet size 1 1/4”
2 Year Bianco Pumpz Warranty
Approved for Wastewater Treatment : AS/NZS 1546.1
Related Products

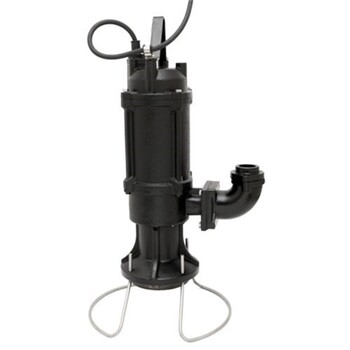

BIA-PDG150M - PUMP SUBMERSIBLE SEWAGE
