BIA-B42AC - Submersible Clean Water Pump

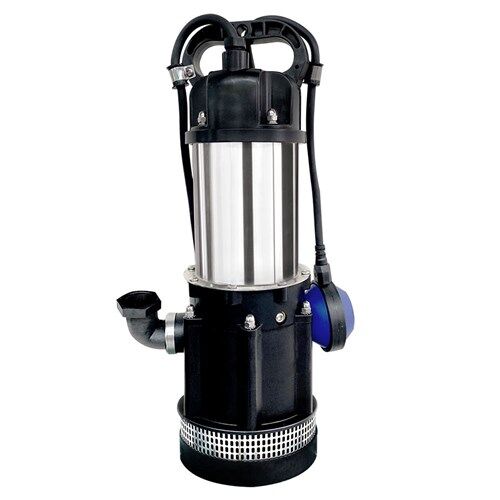

Bianco BIA-B42AC High Head Submersible Pump
(805140)
Submersible high head pump designed for AWTS and rainwater tanks. Fitted with noryl impellers and stainless steel strainer. AS/NZS4020 Approved for drinking water, 5 star energy rating, 550 watts.
Features:
- Glass Filled Nylon pump body and Stainless Steel cover for strength and lightness.
- Easy grip, nylon carry handle.
- Dual mechanical seals (Carbon ceramic on pump side / silicon carbide in oil bath on motor side).
- 3 Stage High Head pump with durable Noryl impellers.
- Elevated (83mm) suction intake with Algae-Proof slotted strainer.

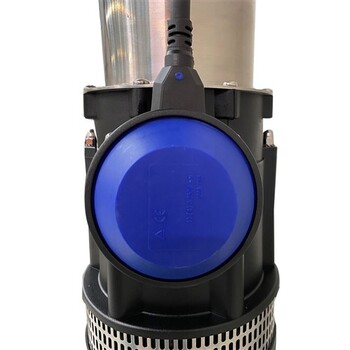

- 10m Power lead and automatic Float Switch. All cables to H07RNF standard.
- 240V Single Phase , 0.55kW 5 Star efficient motor. Built in auto-resetting thermal overloads
- Slotted strainer
- built in 83mm pump riser
Benefits:
- Strainer design improves water flow and prevents blockage from algae growth.
- Light weight – easy to lift and lower
- Elevated intake draws oxygenated water from higher in tank and avoids sludge layer.
- Leads to improved water quality with lower algae and anaerobic mater for better smelling water and cleaner clothes washing.
- Quality pump materials assist with longer pump life while still being light to lift and lower.
- High Head pump with low energy usage
Applications
- Domestic pressure systems (with optional Press Control)
- Pumping Clean and pre-treated water.
- AWTS – Automated Water Treatment Systems pump out to dripper beds.
- De-watering of cellars, basements and garages.
Technical Specifications
| Brand | Bianco Pumpz |
| Product Type | Submersible Pump |
| Suitable For | Clean Water |
| Bar | 3.2 Bar |
| Flow Range Category | b. 100 – 199 L/min |
| Flow Rate (L/min) | 105 L/min |
| Float | Float Included |
| Hp | 0.75 Hp |
| kPa | 320 kPa |
| Kilo Watts | 0.55 kW |
| Head Range Category | a. 0 – 39 m |
| Max Head (m) | 32 m |
| Port Size Outlet | 1″ BSPF outlet |
| Dimensions | 225L x 163W x 490H (mm) |
| Taps | 10 Taps |
| Volts | 240 V |
| Warranty (months) | 24 Months |
| Watts | 550 W |
