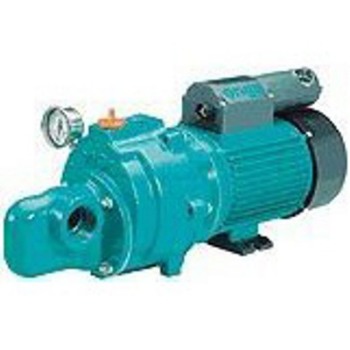

DAB JETCOM102NXT Pressure Pump with NxT Controller 808410
DAB JETCOM102NXT Pressure Pump with NxT Controller 808410
Self priming techno-polymer jet pumps, DAB jet pumps are renowned for their unique self priming and extraordinary deep suction capability: up to 9 metres at sea level. Available in Cast Iron and stainless steel, they are designed to handle abrasive and corrosive water which makes them ideally suited for spear point applications. 2 year pump parts & labour warranty.
Automatically restarts after water loss or interrupted power.
Dry run protection protects pump from damage
Eliminates water hammer protecting plumbing
Compact size for easier installation
Technical Specifications
| Brand | DAB Pumps |
| Product Type | Single Stage Jet Pump |
| Suitable For | Clean Water |
| Bar | 5.38 Bar |
| Approval | Approved For Drinking Water |
| Flow Range Category | a. 0 – 99 L/min |
| Flow Rate (L/min) | 60 L/min |
| Hp | 1 Hp |
| kPa | 545 kPa |
| Kilo Watts | 0.75 kW |
| Head Range Category | b. 40 – 59 m |
| Max Head (m) | 53.8 m |
| Port Size Inlet | 1″ BSPF inlet |
| Port Size Outlet | 1″ BSPM outlet |
| Powered | Electric |
| Volts | 240 V |
| Warranty (months) | 24 Months |
| Watts | 750 W |
Controller
This pump includes the Bianco iCON nXt series of pump controller.
The nXt Controller is designed and tested in Australia to ensure operation in the toughest of environments, combining innovative technology with robust proven architecture to guarantee constant supply of pressurised water when and where you need it the most.
Controller Features
- Digital display gives you a real time indication of system pressure
- Anti-cycle Protection
- Dry run protection with auto restart function that tests for water availability every 24hrs
- Anti-seize function if pump has not operated for last 24 hours
- Controller automatically restarts pump after a power failure
- Easy assembly and removal using push-n-connect fitting with U clip
- Complies to AS/NZ 4020 drinking water standard
- Over pressure protection turns pump off when 10 bar is reached
Overload protection
| nXt Controller Data | |
|---|---|
| Function | ON/OFF |
| Modes | 1 |
| Size | 1.5Kw |
| Rated Voltage | 220-240V AC |
| Max Amps | 10 |
| Rated Power | 1500w |
| Rating | IP65 |
| Union Size | 1″ |
| Start Pressure | 2.2 bar (32PSi) |
| Stop Pressure | on no flow |
| Max Pressure | 10 bar (145PSI) |
| Max Liquid Temp | 40°C |
| Cable to Pump | Plug and Play |
| Flylead for Pump | When sold as control only |
| Power Cable | 10AMP |
| Communication | – |
| Accessories (Sold Separately) | – |
Related Products

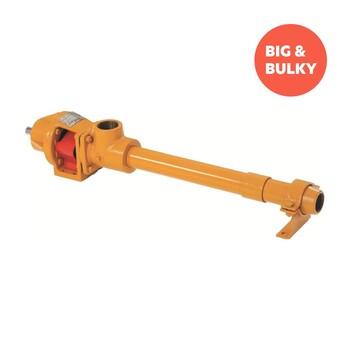

Mono ASP520 Bareshaft Pump Unit
Mono ASP range is a water transfer pump and has been designed to pump water from rivers, dams or tanks to a desired location.

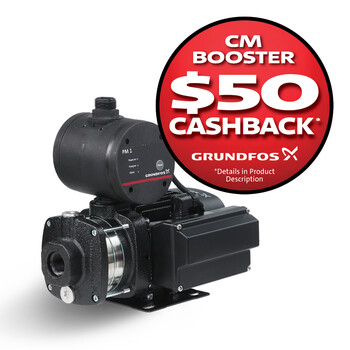

Grundfos CMB 3-37 Pressure Pump
