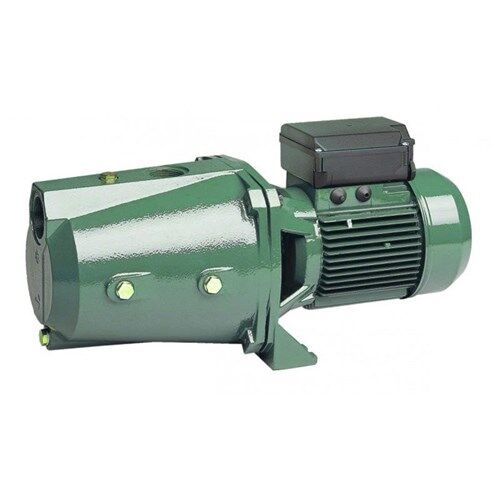

DAB-200M Single Stage Jet Assisted Cast Iron Shallow Well Pump

Brand: DAB

SKU: DAB-200M

Was $2,090.00

$1,220.00 (Each)

Availability: Available

DAB-200M Single Stage Jet Assisted Cast Iron Shallow Well Pump

DAB pumps offer a large range of pumps suitable for pressure boosting, irrigation and wash down applications. Designed for pumping from tank, rivers and dams. These pumps are very reliable in the toughest of environments. The pumps are single stage jet assisted and constructed of cast iron. Capable of suction up to 8 meters.

Handy Hints for Installing Your Jet Pump

Location: The pump should be located as close to the water source as possible and should be protected from the elements
Piping: Only use pipe that is in good condition and free of rust or scale
Types of Pipe: Plastic or galvanised steel can be used with jet pumps
Water to Pump Piping: All offset piping should slope upwards from water source to pump.

Technical Specifications

Brand	DAB Pumps
Product Type	Single Stage Jet Pump
Suitable For	Tank Transfer
Bar	4.1 Bar
Flow Range Category	b. 100 – 199 L/min
Flow Rate (L/min)	175 L/min
Hp	2 Hp
kPa	415 kPa
Kilo Watts	1.47 kW
Casing Material	Cast Iron
Head Range Category	b. 40 – 59 m
Max Head (m)	41 m
Port Size Inlet	1 1/2″ BSPF inlet
Port Size Outlet	1 1/4″ BSPF outlet
Powered	Electric
Volts	240 V
Warranty (months)	24 Months
Watts	1470 W
